Dear Customer,



9,000 and 12,000 BTU okyotech ductless mini split air conditioner models are required to have 115VAC.Their electrical wiring diagrams are very simlar.



18,000 and 24,000 BTU and 36,000 BTU okyotech ductless mini split air conditioner models are required to have 208-230VAC power input and 2 phases. Their electrical wiring diagrams are very similar.



Please refer to the electrical wiring diagram below in order to be able to install the units.

*The 18,000 BTU electrical wiring below is only applicable with previous version of 18,000 BTU               okyotech mini split unit which has built in power plug on the indoor unit.



Below is the Electrical wiring diagram for the latest version of 18,000 BTU okyotech mini split unit ( does not have built in power plug on the indoor unit )



  *The 24,000 BTU electrical wiring diagram below is also applicable with the following okyotech models :

  •    36,000 BTU okyotech mini split units.

  *The following diagram below is applicable for 9,000 BTU and 12,000 BTU  Version 2 okyotech units.



​Important Note : If the Terminal block on your Outdoor unit is the same as the Outdoor Terminal block on the drawing below , your okyotech unit is Version 2 and you need to refer the wiring diagram below.

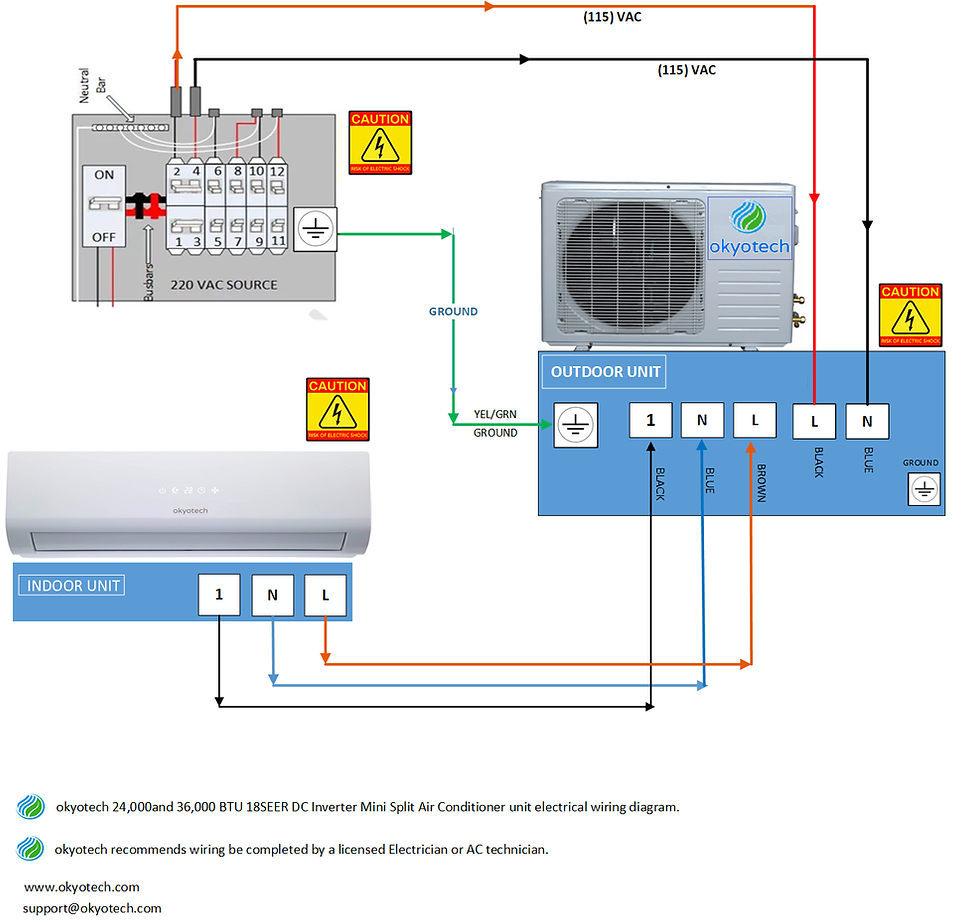

  *The following diagram below is applicable for 24,000 BTU and 36,000 BTU  Version 2 okyotech units.



​Important Note : If the Terminal block on your Outdoor unit is the same as the Outdoor Terminal block on the drawing below , your okyotech unit is Version 2 and you need to refer the wiring diagram below.
